Descrizione
Codice: AF-MS175, AF-IS0836

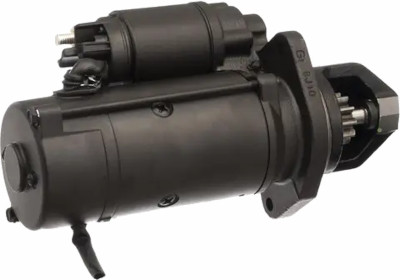

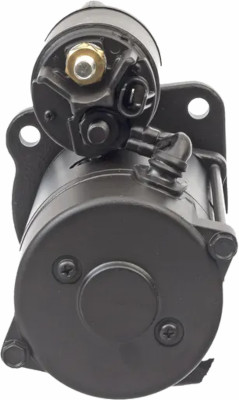

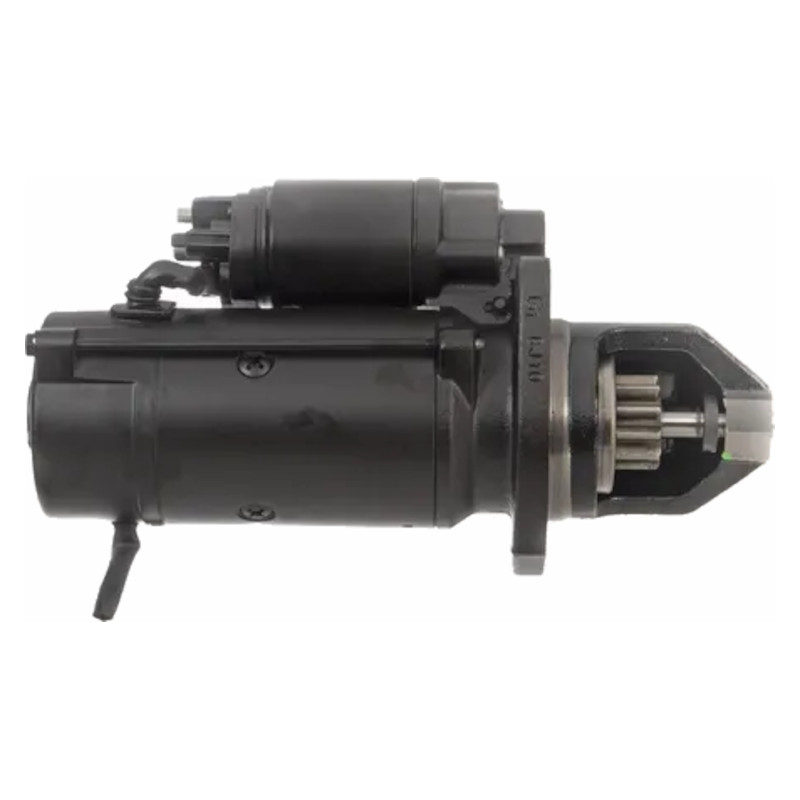

Motorino di avviamento con riduttore 12 V – 4,2 KW – 11Z MAHLE
Informazioni:

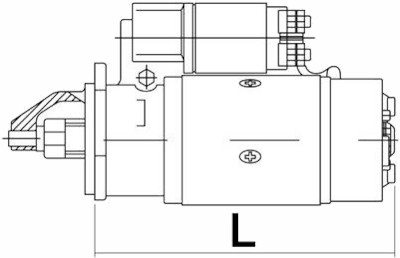

Lunghezza: 220 (mm.)
Tensione: 12 (V)
Potenza: 4.2 (kW)
Numero fori di montaggio: 3

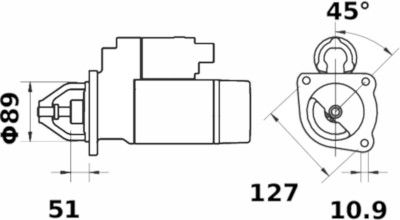

Distanza fori di montaggio: 127 (mm.)
Numero denti pignone: 11
Distanza flangia volano: 51,0 (mm.)
Senso di rotazione: ↻ (orario)
Ingranaggio di riduzione
Peso: 10,97 (Kg.)
Compatibile con:
Case-IH:
CS: CS100, CS100Pro, CS110, CS120, CS130, CS150, CS68, CS75, CS78, CS80, CS80Pro, CS86, CS90, CS90Pro, CS94
CVX: CVX1135, CVX1145, CVX1155, CVX1170, CVX1190, CVX1195, CVX120, CVX130, CVX140, CVX150, CVX160, CVX170, CVX175, CVX195
Fendt:
200 Vario: 207, 207V/F, 208, 208V/F, 209, 209V/F/P, 210, 210V/F/P, 211, 211V/F/P
300 Vario SCR S4: 310, 311, 312, 313
Mietitrebbia:
5000: 5185E, 5220E, 5225E, 5255L, 5255L MCS, 5275C, 5275C PL, 5275C PLI
6000: 6275L, 6275L MCS, 6335C, 6335C PL
8000: 8370P, 8380P
9000: 9350R, 9470X, 9490X Gen II
Massey Ferguson:
7400: 7465, 7475, 7485, 7490, 7495
New Holland:
T7500: T7510, T7520, T7530, T7540, T7550
TVT: TVT135, TVT145, TVT155, TVT170, TVT190, TVT195
Steyr:
9000: 9080MT, 9090MT
9100: 9100MT, 9115, 9125, 9145
CVT 6000: 6135, 6140, 6145, 6150, 6155, 6160, 6170, 6175, 6190, 6195
M: 968, 975, 9078, 9086, 9094
Valmet / Valtra:
300: 305
400: 405, 455, vari modelli con 411DS
500: 505
600: 605, 655
6000: 6000, 6100, 6200, 6300, 6400, 6600, 6650HI, 6800
700: 700, 700MKII, 705, 715, 715M, 755
800: 805, 815, 855
8000: 8000, 8050, 8100, 8150, 8200, 8400, 8450, 8550, 8750
900: 900, 905
A: A82, A85, A92, A95
N: N101 Classic, N101 HI-TEC, N111 Classic, N111 HI-TECH, N111E HI-TEC, N121 Advance, N121 HI-TEC, N122 Direct, N122 Versu, N123 Direct, N123 Versu, N141 HI-TEC, N141 LS, N142 Direct, N142 Versu, N143 Direct, N163 Direct, N163 Versu, N91 Classic, N91 HI-TEC
S: S230, S232, S233, S240, S260, S262, S263, S274, S280, S292, S293, S294, S322, S323, S324, S352, S353, S354, S374
T: T133 HI-TECH, T144, T151 EH, T153 Direct, T153 HI-TECH, T153 Versu, T154, T161 H, T161 LS, T173 HI-TECH,T174E, T180, T190, T193 HI-TECH, T194
T2: T132 D/V, T152 D/V, T172 D/V, T182 D/V
TC/TCH: T120 C/CH, T121 H/C, T130 C/CH, T131 H/C, T140E C/CH, T150 C/CH, T160 C/CH
Zetor:
3000: 3011, 3045, 3320, 3340, 3511, 3513, 3545
4000: 4000, 4320 (4701), 4320 (6201), 4340 (4701), 4340 (6201), 4511, 4712, 4718, 4911 (4901), 4911 (5001)
5000: 5000, 5011 (5001), 5211 (5001), 5211 (5201), 5245 (5001), 5245 (5201), 5320 (5001), 5320 (5201), 5320 (7201), 5321, 5340 (5001), 5340 (5201), 5340 (7201), 5340H, 5511, 5516, 5545, 5611, 5645, 5647, 5711, 5718, 5745, 5748, 5911 (4701), 5911 (5001), 5911 (5901), 5911 (6201), 5945 (4701), 5945 (5001), 5945 (5901), 5945 (6201)
6000: 6011 (5901), 6011 (6001), 6011 (6201), 6011 (6701), 6045 (5901), 6045 (6001), 6045 (6201), 6045 (6701), 6211, 6245 (6001), 6320, 6340, 6340H, 6711 (6001), 6711 (6201), 6711 (6701), 6718 (6001), 6718 (6201), 6718 (6701), 6745 (6001), 6745 (6201), 6745 (6701), 6748 (6001), 6748 (6201), 6748 (6701), 6911 (5201), 6911 (6001), 6911 (6901), 6918 (5201), 6918 (6901), 6945 (5201), 6945 (6001), 6945 (6901)
7000: 7011, 7045, 7045H, 7211, 7245 (7001), 7245 (7201), 7245H, 7320 (7701), 7320 (7901), 7340 (7701), 7340 (7901), 7711, 7711T, 7745, 7745H, 7745T
Super: 7321
